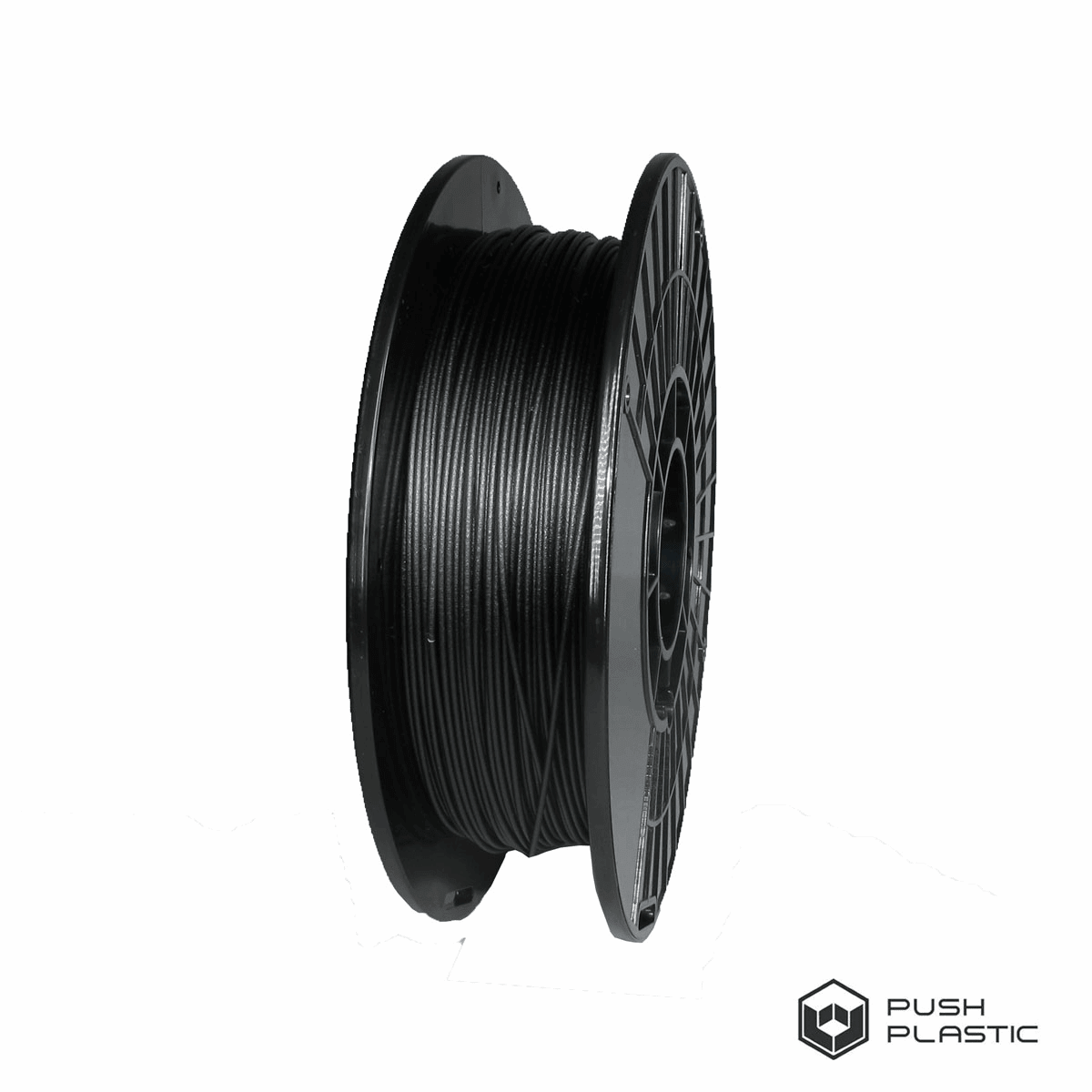

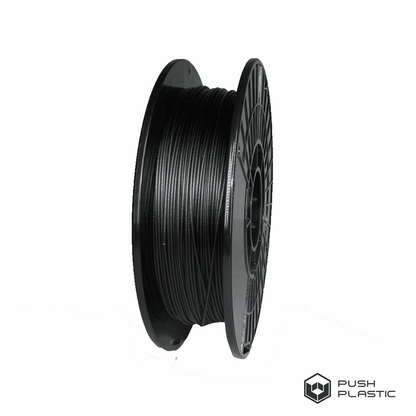

Push Plastic Carbon Fiber PC-PBT Filament | 1.75mm | 500g

Carbon Fiber Reinforced PC-PBT. Engineering Performance. Prototype-Ready Format.

Push Plastic Carbon Fiber PC-PBT takes the already-impressive mechanical profile of PC-PBT and pushes it further with a proprietary carbon fiber reinforcement blend. The result is a stiffer, more dimensionally stable material that prints with the clean, matte surface finish characteristic of carbon fiber filaments — and performs like it in the hands.

The 500g spool is the right entry point. Whether you're evaluating CF PC-PBT before committing to a bulk production run, printing a smaller structural component, or prototyping a design that demands carbon fiber performance without the volume of a 10kg spool, the 500g format gives you full access to the material at a practical scale.

What Carbon Fiber Reinforcement Adds:

• Increased Stiffness — carbon fiber raises the rigidity of an already stiff PC-PBT matrix, producing parts that resist flex and deformation under load
• Improved Dimensional Stability — reduced warping and shrinkage compared to unreinforced PC-PBT, delivering accurate, repeatable prints even on detailed or precision components
• Professional Surface Finish — the smooth, matte appearance typical of carbon fiber filaments — functional and aesthetically suited to professional and industrial applications
• Consistent Performance — engineered proprietary CF blend for uniform fiber distribution and reliable extrusion behavior across every spool

Important: Hardened Steel Nozzle Required. Carbon fiber is abrasive. A standard brass nozzle will wear rapidly when printing CF PC-PBT. A hardened steel nozzle of 0.4mm or larger is required — 0.6mm is recommended for optimal flow and fiber distribution. Do not print this material with a brass nozzle.

Built for engineers and makers running demanding applications — perfect for:

• Functional prototypes requiring structural rigidity and dimensional accuracy
• Mechanical and load-bearing parts where standard filaments lack the stiffness required
• Jigs, fixtures, and tooling for production and workshop environments
• High-strength precision components in automotive, robotics, and aerospace-adjacent applications
• Evaluating CF PC-PBT performance before scaling to bulk 10kg production spools
• Any application where a clean, matte carbon fiber surface finish is part of the brief

Printer Compatibility: Compatible with most 1.75mm FDM 3D printers capable of engineering-grade temperatures. Hardened steel nozzle required. Enclosure recommended.

Key Properties

• Material: Carbon Fiber Reinforced PC-PBT (Polycarbonate + Polybutylene Terephthalate)
• Reinforcement: Proprietary carbon fiber blend
• Diameter: 1.75mm
• Spool Weight: 500g (1.1lbs)
• Print Temperature: 250–260°C (higher temperatures improve layer bonding)
• Bed Temperature: 90–100°C
• Nozzle Requirement: Hardened steel — required (carbon fiber is abrasive; brass nozzles will wear rapidly)
• Recommended Nozzle Size: 0.4mm minimum — 0.6mm recommended
• Layer Height: 50–60% of nozzle diameter
• Surface Finish: Smooth matte — characteristic carbon fiber appearance
• Key Strengths: High stiffness, dimensional stability, reduced warping, professional surface finish
• Compatibility: Most 1.75mm FDM 3D printers capable of engineering-grade material temperatures; enclosure recommended
